Dutch Woven Sintered Wire Mesh
Sintered Wire Mesh Laminates
2020年11月23日2 to 3 layers of plain dutch woven wire mesh reinforcement layers with equal hole size and 3 or 4 stainless steel mesh fine layers after vacuum sintering, pressurizing and rolling together forms dutch woven sinter wire mesh. Dutch woven sintered mesh is an important and widely used type sintered metal filter. This type of stainless steel sintered wire mesh has evenly spaced openings and steady air permeability to flow, and has very great mechanical strength due to the heavy dutch woven wire mesh layers.
This type of sintered filter plate is commonly used in powder transport, laboratory fluid bed, driers, coolers and other solid materials. Additional, it is widely used for gas and liquid filter, chemical filter, pharmacy filter and laboratory filters.
Specification
The standard materials are: SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 1200 × 1500 mm.
Dutch woven mesh type: 12 × 64 / 64 × 12.
This type of sintered filter plate is commonly used in powder transport, laboratory fluid bed, driers, coolers and other solid materials. Additional, it is widely used for gas and liquid filter, chemical filter, pharmacy filter and laboratory filters.
Specification
The standard materials are: SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 1200 × 1500 mm.
Dutch woven mesh type: 12 × 64 / 64 × 12.
Sintered wire mesh with dutch weave mesh as reinforcement layer

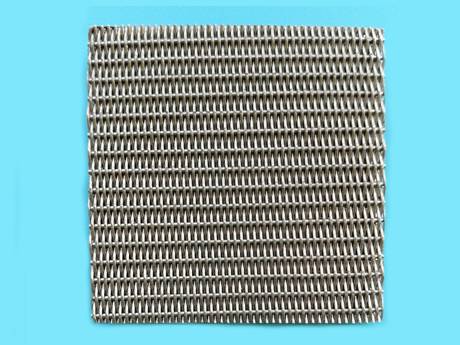

Positive and negative side of dutch weave sintered filter disc.

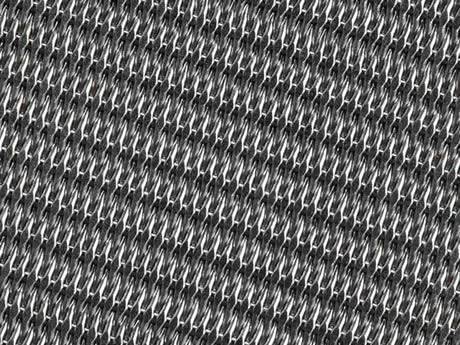

Dutch weave woven mesh as reinforcement layer of sintered mesh.

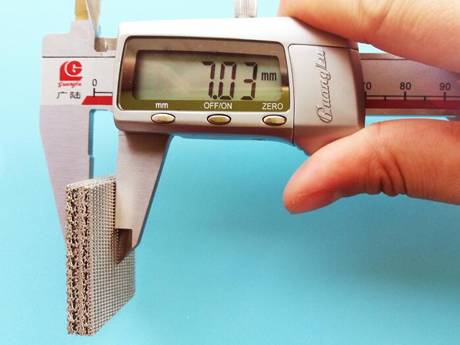

Dutch weave sintered mesh can be made into different thickness and structures for filtering.

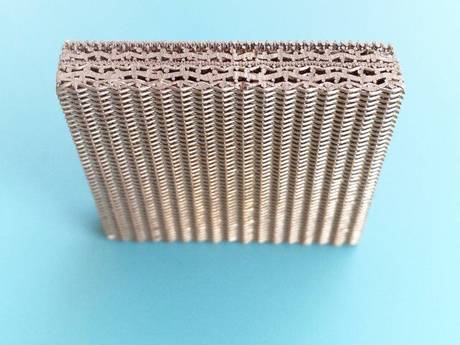

Smooth and tiny surface ensures high filtering efficiency.

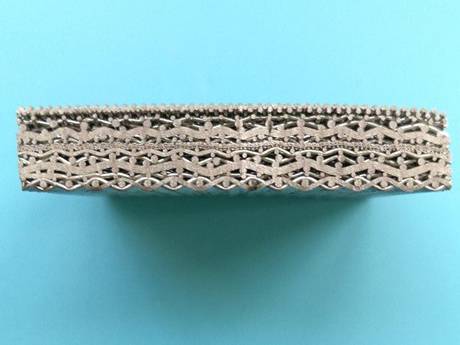

Sintered mesh can be made into multi-layers for different accuracy requirements.
