Perforated Sintered Wire Mesh
Sintered Wire Mesh Laminates
2020年11月23日It is well used in oil wells, where fine particles need to be filtered under extremely high pressure conditions.

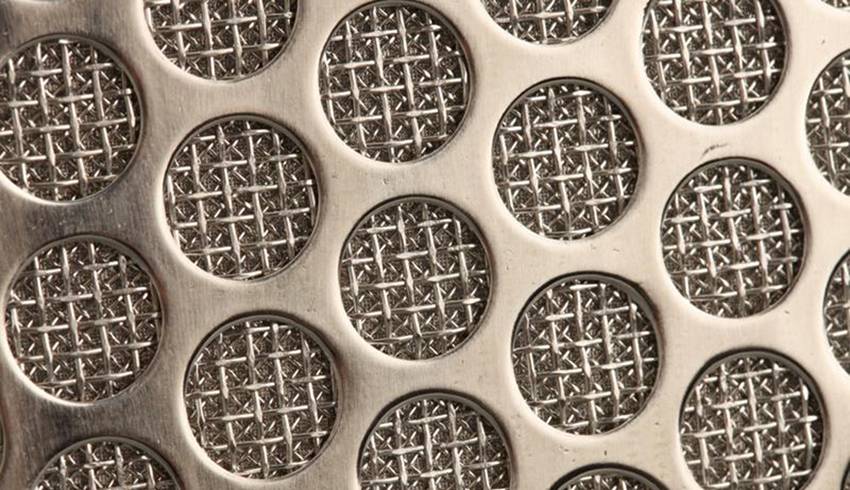

A whole piece of perforated sintered mesh and a five-layer structure of sintered mesh.
Perforated metal sintered mesh has five layers for high performance.
Perforated sintered wire mesh plate is made from several layers of stainless steel woven wire mesh and a perforated metal layer sintering together, usually consisting of five layers (as the left picture shown) - perforated layer, buffer layer, fine mesh, protective layer and filer layer. The above layers are sintered together to form a very study and strong multi-layers filter mesh. The perforated metal as reinforcement layer support the filter structure, which has very high compressive and mechanical strength.
Perforated metal sintered mesh has five layers for high performance.
Perforated sintered wire mesh plate is made from several layers of stainless steel woven wire mesh and a perforated metal layer sintering together, usually consisting of five layers (as the left picture shown) - perforated layer, buffer layer, fine mesh, protective layer and filer layer. The above layers are sintered together to form a very study and strong multi-layers filter mesh. The perforated metal as reinforcement layer support the filter structure, which has very high compressive and mechanical strength.
Perforated metal sintered wire mesh specifications:
Filter raiting: 2 um - 200 um.
Materials: SUS 304, 316, 316L; or Alloy Steel Hastelloy, Monel, Inconel.
Standard size: 500 × 1000 mm, 600 × 1200 mm and 1000 × 1000 mm, 1200 × 1200 mm.
Perforated sintered mesh filter sheets, filter discs, and filter tube in a variety of diameters and lengths are also can be manufactured in our company.
Filter raiting: 2 um - 200 um.
Materials: SUS 304, 316, 316L; or Alloy Steel Hastelloy, Monel, Inconel.
Standard size: 500 × 1000 mm, 600 × 1200 mm and 1000 × 1000 mm, 1200 × 1200 mm.
Perforated sintered mesh filter sheets, filter discs, and filter tube in a variety of diameters and lengths are also can be manufactured in our company.

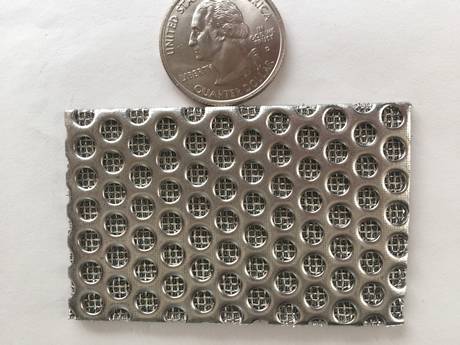

Perforated metal sintered filter panel.

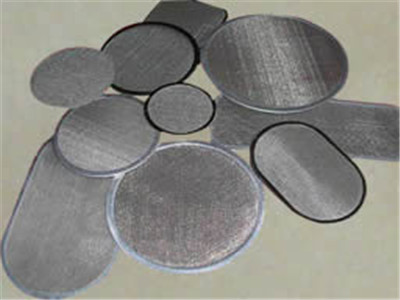

Perforated metal sintered filter disc.
Perforated metal sintered mesh filter basket.
