Ring Filter Disc
Sintered Wire Mesh Laminates
2020年11月23日Ring filter disc, also called ring wire mesh filter disc or annulus/annular filter disc, is made of single or multi-layer woven mesh in plain, twill or dutch weave type and it has an ring shape. Ring filter disc can be made from different kinds of materials such as stainless steel, aluminium, copper or brass. Because of its high porosity, permeability and anti-acid, ring filter disc is widely applied for gas, liquid filtration as well as other medium separation in pharmaceutical, petrochemical and food industry.

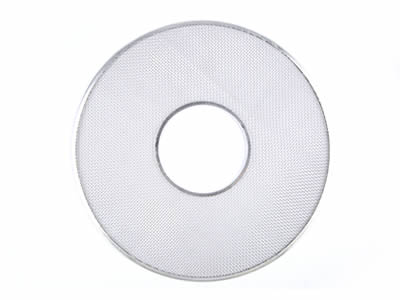

The stainless steel ring filter disc can be used in oil filtration.

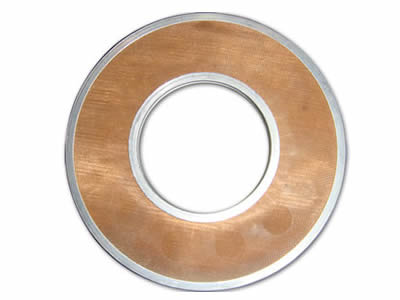

Firm and tenacious copper ring filter disc

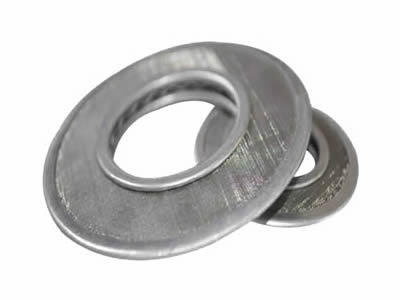

multilayer ring filter disc

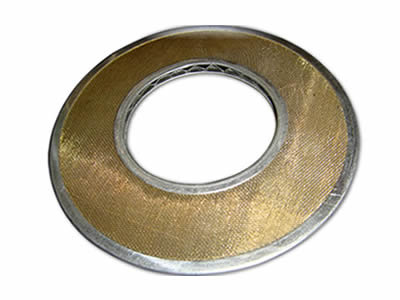

Brass ring filter

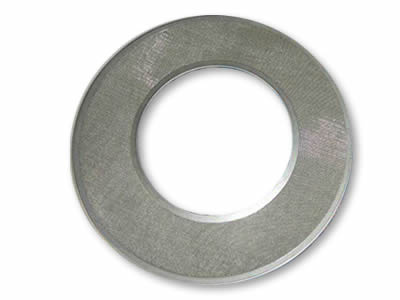

Single layer stainless steel ring filter disc
Multilayer ring filter disc
Specifications:
Item: ring filter disc.
Materials: stainless steel, copper, brass, aluminium.
Wire diameter: 0.1–2.03 mm
Disc thickness: 0.2–7 mm.
Filtration accuracy: 2–1000 microns.
Inner diameter: 18–250 mm.
Outer diameter: 50–350 mm.
Mesh weave type: twill weave (635 meshes), plain weave (up to 400 meshes), dutch weave (3200 mesh).
